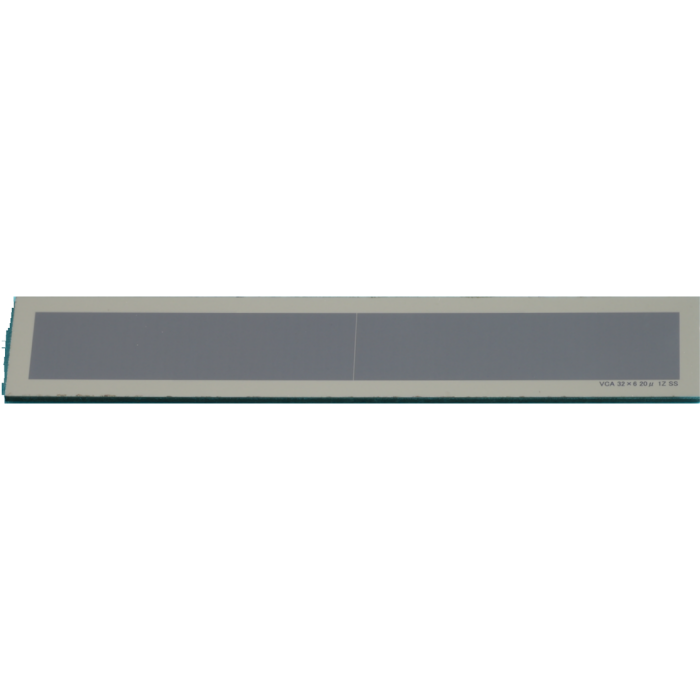

20µ Linear Steel Scales
Overview
20µm stainless steel precision scales complement high resolution optical reflective read head encoder modules. Nanometer photolithography creates accurate and repeatable patterns.
Production scales match the encoder, physical, environmental, and performance requirements. Coatings are processed for specific wavelengths matched to requirements. For applications requiring lower CTR for better accuracy over temperature, consider our standard soda-lime glass precision scales.
Specifications
For Custom Scale Requests, please contact us.
Learn more about our Scale Manufacturing Capabilities.
| SKU | Indexes | Length | Width | Total Thickness (with PSA Tape) | PSA Tape Thickness |
|---|---|---|---|---|---|
| LS21R22-3-0.2ET | 1 | 22mm | 3mm | 0.2mm | No PSA Tape |
| LS21R22-3-0.25ETT1 | 1 | 22mm | 3mm | 0.25mm | 0.05mm PSA Tape |
| LS21R22-3-0.4ETT2 | 1 | 22mm | 3mm | 0.4mm | 0.2mm PSA Tape |
| LS21R32-6-0.4ET | 1 | 32mm | 6mm | 0.4mm | No PSA Tape |
| LS21R32-6-0.45ETT1 | 1 | 32mm | 6mm | 0.45mm | 0.05mm PSA Tape |
| LS21R32-6-0.6ETT2 | 1 | 32mm | 6mm | 0.6mm | 0.2mm PSA Tape |
Documents
Key Features
- Built to Order
- Reduce manufacturing issues
- Highest Quality and Extremely low defects
- PSA Backing available
- UV Curable coatings available
- Maximize Performance of any Encoder
- Improve Accuracy with Ultra Precision Sub-Micron Photolithography
- Optimize Contrast Ratio with Coating process options
- Glass, Stainless Steel, and PET materials
LS2
In stock
- SKU:
- LS2
- Scale Material:
- Stainless Steel
Compliance
Active
More Information
| Product Name | 20µ Linear Steel Scales |
|---|---|
| Life Cycle | Active |
| Track Width (mm) | 3.000000 |
| Width (mm) | 3.000000 |
| Pitch (µm) | 20 |
| Thickness (mm) | 0.200000 |
| Compatible Encoder | SMD-04B |
| Compatible Encoder | SMD-04B |
| Scale Material | Stainless Steel |
| Coating | Reflective metal with anti-reflective |
| Index Count | 1 |
| Index Position(s) | 16mm from Glass Edge |
