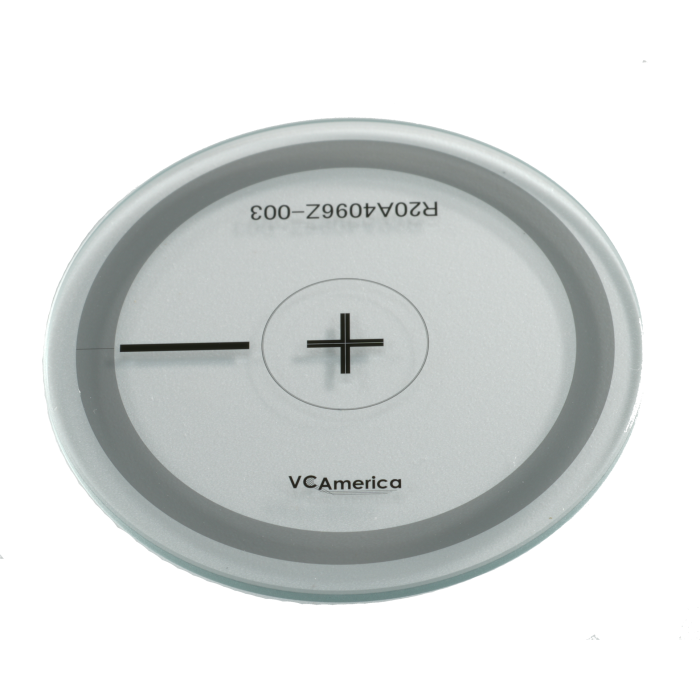

20µm Rotary Glass scale CPR=4096 OD=31.5 ID=0mm
Overview
Maximize performance of any optical encoder with precision glass scales by VC America. Linear and Rotaryscales are manufactured using soda-lime glass with chrome reflective and absorptive layers optimized for 630-640nm (Red LED), with dimensional precision and low defect density.
Standard scales provide opportunity for fast evaluation and support production and we manufacture to customer specifications for unique patterns and dimensional requirements.
Track periods of 20µm, 40µm, 100µm are common. We'll manufacture scales to 2µm period (1µm reflective +1µm clear or anti-reflective) when needed.
Documents
Key Features
- Built to Order
- Reduce manufacturing issues
- Highest Quality and Extremely low defects
- UV Curable coatings available
- Maximize Performance of any Encoder
- Improve Accuracy with Ultra Precision Sub-Micron Photolithography
- Optimize Contrast Ratio with Coating process options
- Glass, Stainless Steel, and PET materials
RG2-4096-320C-3EVAL
In stock
- SKU:
- RG2-4096-320C-3EVAL
- Scale Material:
- Glass
Compliance
Active
More Information
| Product Name | 20µm Rotary Glass scale CPR=4096 OD=31.5 ID=0mm |
|---|---|
| Price | $58.47 |
| Life Cycle | Active |
| Inner Diameter (mm) | 0.000000 |
| Outer Diameter (mm) | 31.500000 |
| CPR (Counts Per Revolution) | 4096 |
| Pitch (µm) | 20 |
| Thickness (mm) | 1.000000 |
| Compatible Encoder | SMD-04B |
| Compatible Encoder | SMD-04B |
| Coating | Reflective Pattern with Clear glass |
| Scale Material | Glass |
| Wavelength (nm) | R |
| Index Count | 1 |
| Index Position(s) | Main Track At Visual Reference |
| Index Location | Main Track At Visual Reference |
