Linear Absolute 100ยต
Overview
The SM3414 is a reflective absolute linear optical encoder IC. The absolute code pattern on the scale is read optically and then output via a serial interface.
An analog incremental signal can also be output. The device incorporates various adjustment circuits controlled via the serial interface, including adjustments for the absolute code binarization threshold voltage and the incremental signal I/V conversion gain.
Documents
Datasheets
Application Notes
Manufacturing
Key Features
- Supply voltage : 2.7 to 3.3V
- 8mA Typical Current consumption (including LED)
- Operating temperature range : -30 to +70ยฐC
- Absolute output: 100µm resolution (9-bit serial output)
- Incremental outputs : Analog phase A and phase B
- Adjustable binarization voltage and incremental signal gain
- LED wavelength : 850nm
- Logic input 3.6V input-tolerant function
- Low-crosstalk dedicated process
- Photodiode with built-in antireflection film

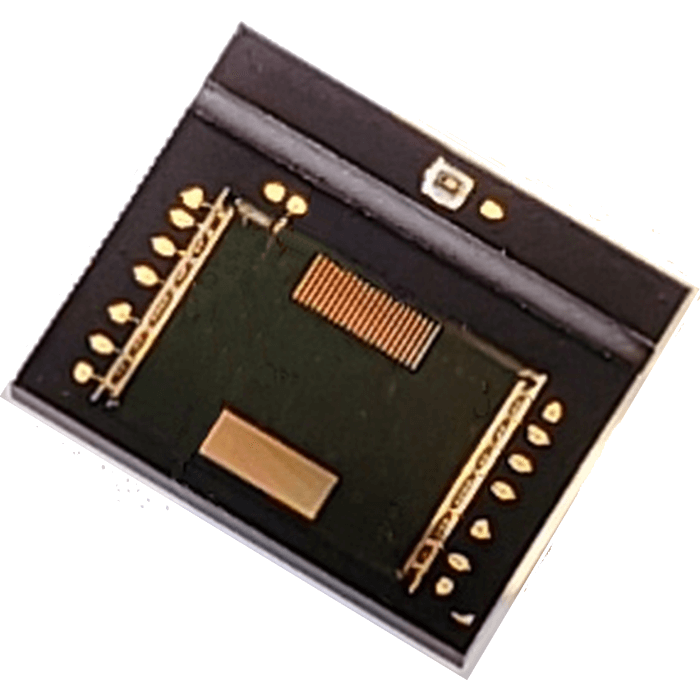

SM3414BL-ENCODER
SM3414BL-ENCODER 100ยต Period, Absolute Linear Analog A-B Digital SPI
In stock
- SKU:
- SM3414BL-ENCODER
Compliance
Life Cycle:
Active
Active
More Information
| Product Name | Linear Absolute 100ยต |
|---|---|
| Life Cycle | Active |
| Encoder Output | Analog A-B Digital SPI |
| Pitch (ยตm) | 100 |
| Width (mm) | 6.400000 |
| Gap (mm) | 2.130000 |
| Encoder Type | Absolute Linear |
| Minimum Voltage (V) | 2.7 |
| Maximum Voltage (V) | 3.3 |
| Height (mm) | 1.000000 |
