20µ Incremental
Overview

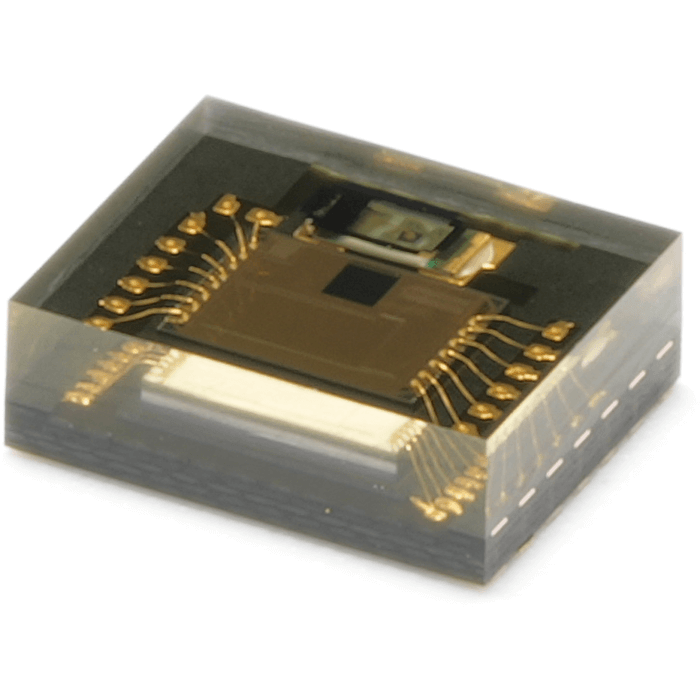

The SMD-01B is a reflective optical incremental encoder head with 20µ period 2-Channel analog A/B outputs.
SMD-01B's low-noise high-precision analog output signals maximize accuracy for High bit ADC external interpolation for picometer resolution.
Excellent Lissajous curve with low cyclical errors increases repeatability for more significant interpolated bits.
A unique LED receptor provides wide tolerance to misalignment, YAW, external contamination and humidity.
Footprint is 5.4x4.3mm and package height 1.0mm with nominal 0.7mm gap to scale for overall height 1.5mm from PCB to scale.
Specifications
| Encoding | Imperial | Metric | ||
|---|---|---|---|---|
| LPI (lines per inch) | Resolution | LPM (lines per mm) | Resolution | |
| ×1 | 1270 LPI | 0.787 mils | 50 LPM | 20µm |
| Quad A-B ×4 | 5080 LPI | 0.197 mils | 200 LPM | 5µm |
| 12-bit Interpolation (External) | 20,807,680 LPI | 0.0000481 mils | 819,200 LPM | 0.0012207µm |
- Sample order and design kits available from stock
- Production orders ≥250 lead time 16-18 weeks
- Contact sales@vcamerica.com to confirm price and delivery
Documents
Key Features
- Accurate Encoder Performance
- High resolution 20 µm track period
- 1270 LPI (Lines per Inch) / 50 Lines per mm
- Quadrature output is 5080 LPI / 200 Lines per mm
- Low noise A/B analog and digital Z (index) outputs
- Low distortion Lissajous curve reduces cyclical errors and improves interpolation repeatability and accuracy
- High resolution 20 µm track period
- Lower assembly, manufacturing, and service costs
- Tolerance to YAW, Pitch and ROLL errors
- Proven reliability and long lifetime
- Small footprint and 1.0mm package height fits within existing hardware
- Optimized OEIC and optics design for easier mounting alignment
SMD-01B-ENCODER
In stock
- SKU:
- SMD-01B-ENCODER
Compliance
Active
More Information
| Product Name | 20µ Incremental |
|---|---|
| Graphical Badges | Best in Class |
| Life Cycle | Active |
| Encoder Output | Analog sinewave A-B |
| Pitch (µm) | 20 |
| Width (mm) | 4.300000 |
| Gap (mm) | 0.300000 |
| Encoder Type | Incremental Reflective |
| Minimum Voltage (V) | 3.13 |
| Maximum Voltage (V) | 5.25 |
| Height (mm) | 1.680000 |
