SMD-04B Evaluation Kit
Overview
Evaluation Kit for SMD-04B Encoder.

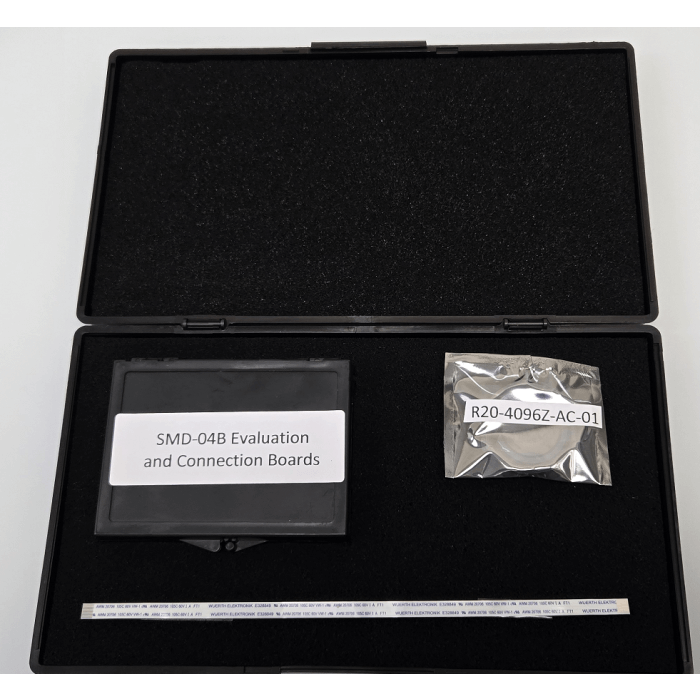

Includes Encoder mounted on evaluation PCB and a standard Linear and Rotary scale.
Documents
Application Notes
SMD-04B-EVAL-KIT
SMD-04B Evaluation Kit
Availability:
In stock
- SKU:
- SMD-04B-EVAL-KIT
$149.00
Best in Class
![]()
Compliance
Life Cycle:
Active
Active
More Information
| Product Name | SMD-04B Evaluation Kit |
|---|---|
| Price | $149.00 |
| Graphical Badges | Best in Class |
| Life Cycle | Active |
| Encoder Output | Analog sinewave A-B |
| Pitch (µm) | 20 |
| Width (mm) | 4.300000 |
| Gap (mm) | 0.700000 |
| Encoder Type | Incremental Reflective |
| Minimum Voltage (V) | 3.13 |
| Maximum Voltage (V) | 5.25 |
| Height (mm) | 1.000000 |
