SME-08 Series Evaluation Kit

Key Features

  • Low assembly costs
  • Common Pinout reduces PCB design
  • Compact clear molded package: (3.95 × 3.4 × 1.00mm)
  • Built-in interpolation circuit
  • 4.5V-5.5V operation
  • LED Wavelength: 850nm

Compliance

Life Cycle:
Active
Certification 1
Certification 1
Overview

SME-08 Evaluation Kits speed up your development cycle!

SME-08ASx is a 80µm native encoder with selectable interpolation (1x, 2x, 4x).
Different versions output different Z-Pulse widths.

SME-08 Versions
VersionAB OutputZ Pulse Width
[°e]		Interpolation
PDFSME-08AS1Digital901x 60KHz
2x 120KHz
4x 240KHz
PDFSME-08AS2180
PDFSME-08AS3360
(x1:430)
PDFSME-08BD0Analog430N/A - 60KHz
PDFSME-08BD1Digital904x 240KHz
8x 480KHz
16x 960KHz
PDFSME-08BD2180
PDFSME-08BD3360
Documents
Application Notes
pdf
SME-08 Evaluation Kits
SME-08 Evaluation Kits

SME-08-EVAL-KIT

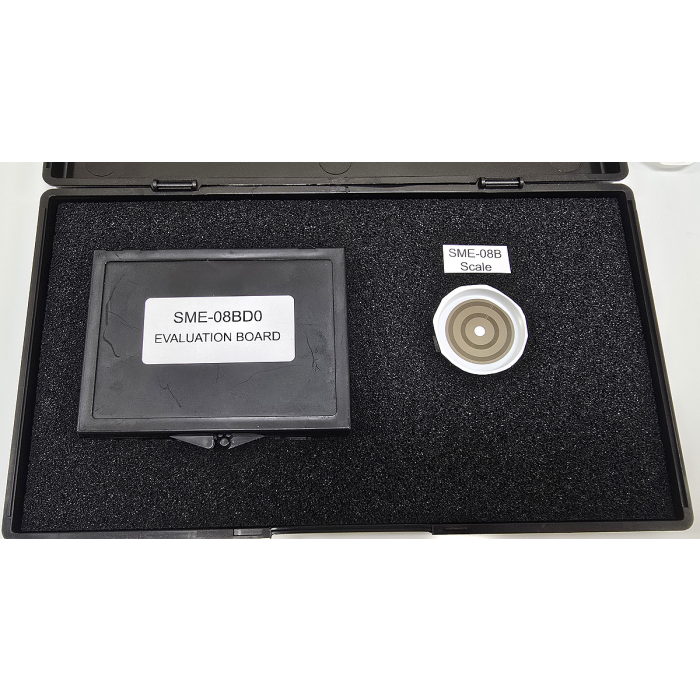

SME-08 Series Evaluation Kit
Availability:

In stock

SKU:
SME-08-EVAL-KIT

Options

As low as: $119.00
Available At

More Information

Product Name SME-08 Series Evaluation Kit
Life Cycle Active
Encoder Output Digital AB INTRPL x1,2,4 Z90deg
Pitch (µm) 80
Width (mm) 3.400000
Gap (mm) 0.750000
Encoder Type Incremental Reflective
Minimum Voltage (V) 4.5
Maximum Voltage (V) 5.5
Height (mm) 1.000000
