SME-08AS1 80µm Incremental Reflective Digital AB INTRPL x1,2,4 Z90deg

Overview

Achieve world class encoder performance with Seiko NPC SMD series combined with VC America's precision scales.

Incremental Optical Reflective Encoders
[[LINK=SMD-04B]]
3-Channel		[[LINK=SMD-01B]]
2-Channel		[[LINK=SME-08]]
3-Channel
ScalesLinear Scales
Rotary Scales
Period Width (µm)202080
OutputAnalog A-B
Digital (Z) Index		Analog A-BAnalog A-B
Digital (Z) Index
A-B Output Gain1, 1.8X, Automatic, Off1, 1.8X, 2.6X, OffAutomatic
PackageLCOBLCOBSee Datasheet
Dimensions L W H (mm)✅5.3 x 4.3 x 1.05.3 x 4.3 x 1.68✅ 3.95 x 3.4 x 1
Gap (mm)0.700.300.75+-0.25
Package+Gap Height (mm)✅1.501.981.75
Operating Voltage4.5V - 5.25V3.13V - 5.25V4.5V - 5.5V
DatasheetsPDFSMD-04BPDFSMD-01BPDFSME-08ASx
PDFSME-08BD0
PDFSME-08BD1_BD2_BD3
Specifications
Delivery
  • Sample order and design kits available from stock
  • Production orders ≥250 lead time 16-18 weeks
  • Contact sales@vcamerica.com to confirm price and delivery
Documents
Manufacturing
pdf
SME-08 Mounting and Storage
SME-08 Mounting and Storage
pdf
SME-08 Packing Specification
SME-08 Packing Specification
Application Notes
pdf
SME-08 Application Notes
SME-08 Application Notes
Datasheets
pdf
SME-08ASx Datasheet
SME-08ASx Datasheet

SME-08AS1

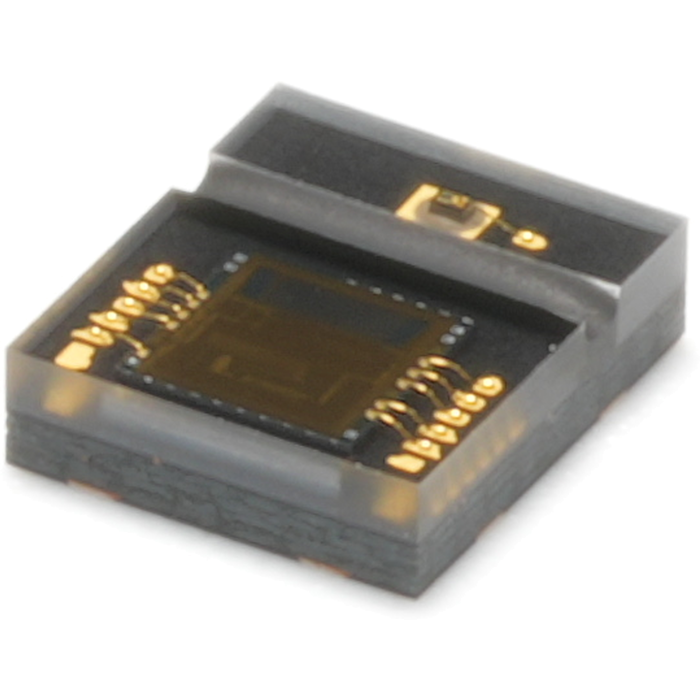

SME-08AS1 80µ Period, Incremental Reflective Digital AB INTRPL x1,2,4 Z90deg
Availability:

In stock

SKU:
SME-08AS1
  $23.65
Available At

Compliance

Life Cycle:
Active
Certification 1
Certification 1

More Information

Product Name SME-08AS1 80µm Incremental Reflective Digital AB INTRPL x1,2,4 Z90deg
Price $23.65
Life Cycle Active
Encoder Output Digital AB INTRPL x1,2,4 Z90deg
Pitch (µm) 80
Width (mm) 3.400000
Gap (mm) 0.750000
Encoder Type Incremental Reflective
Minimum Voltage (V) 4.5
Maximum Voltage (V) 5.5
Height (mm) 1.000000
