SME-08ASx 80µ Incremental

Overview

SME-08ASx is a 80µm native encoder with selectable interpolation (1x, 2x, 4x).
Different versions output different Z-Pulse widths.

SME-08ASx Versions
VersionAB OutputZ Pulse Width
[°e]		Interpolation
PDFSME-08AS1Digital901x 60KHz
2x 120KHz
4x 240KHz
PDFSME-08AS2180
PDFSME-08AS3360
(x1:430)
Specifications
Delivery
  • Sample order and design kits available from stock
  • Production orders ≥250 lead time 16-18 weeks
  • Contact sales@vcamerica.com to confirm price and delivery
Documents
Manufacturing
pdf
SME-08 Mounting and Storage
SME-08 Mounting and Storage
pdf
SME-08 Packing Specification
SME-08 Packing Specification
Application Notes
pdf
SME-08 Application Notes
SME-08 Application Notes
Datasheets
pdf
SME-08ASx Datasheet
SME-08ASx Datasheet

Key Features

  • Low assembly costs
  • Common Pinout reduces PCB design
  • Compact clear molded package: (3.95 × 3.4 × 1.00mm)
  • Built-in interpolation circuit
  • 4.5V-5.5V operation
  • LED Wavelength: 850nm

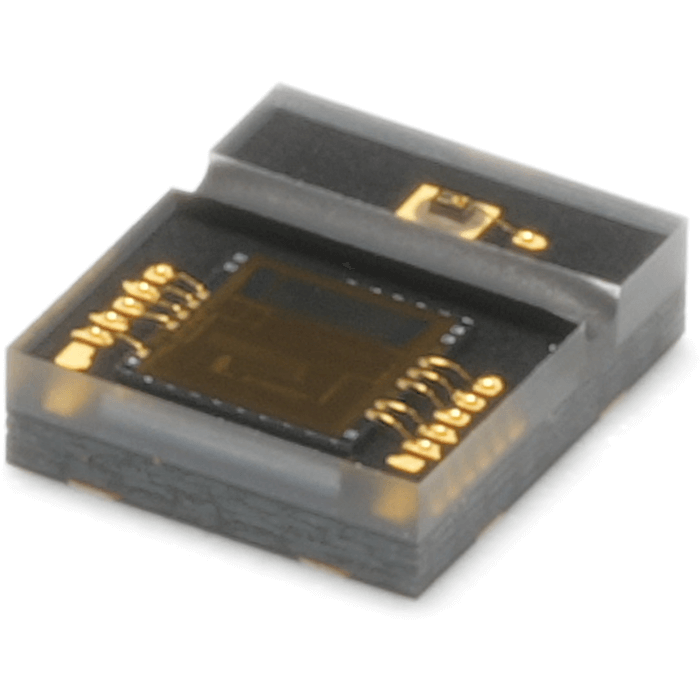

SME-08ASx

SME-08ASx Series 80µ Incremental Encoders

In stock

SKU:
SME-08ASx

Grouped product items

$23.65
$119.00
$23.65
$119.00
$23.65
$119.00

Compliance

Life Cycle:
Active
Certification 1
Certification 1

More Information

Product Name SME-08ASx 80µ Incremental
Life Cycle Active
Encoder Output Digital AB INTRPL x1,2,4 Z90deg
Pitch (µm) 80
Width (mm) 3.400000
Gap (mm) 0.750000
Encoder Type Incremental Reflective
Minimum Voltage (V) 4.5
Maximum Voltage (V) 5.5
Height (mm) 1.000000
