SME-08BD0 80µm Incremental Reflective Analog A-B Digital Z Index

Overview

Achieve world class encoder performance with Seiko NPC SMD series combined with VC America's precision scales.

Incremental Optical Reflective Encoders
[[LINK=SMD-04B]]
3-Channel		[[LINK=SMD-01B]]
2-Channel		[[LINK=SME-08]]
3-Channel
ScalesLinear Scales
Rotary Scales
Period Width (µm)202080
OutputAnalog A-B
Digital (Z) Index		Analog A-BAnalog A-B
Digital (Z) Index
A-B Output Gain1, 1.8X, Automatic, Off1, 1.8X, 2.6X, OffAutomatic
PackageLCOBLCOBSee Datasheet
Dimensions L W H (mm)✅5.3 x 4.3 x 1.05.3 x 4.3 x 1.68✅ 3.95 x 3.4 x 1
Gap (mm)0.700.300.75+-0.25
Package+Gap Height (mm)✅1.501.981.75
Operating Voltage4.5V - 5.25V3.13V - 5.25V4.5V - 5.5V
DatasheetsPDFSMD-04BPDFSMD-01BPDFSME-08ASx
PDFSME-08BD0
PDFSME-08BD1_BD2_BD3
Specifications
Delivery
  • Sample order and design kits available from stock
  • Production orders ≥250 lead time 16-18 weeks
  • Contact sales@vcamerica.com to confirm price and delivery
Documents
Manufacturing
pdf
SME-08 Mounting and Storage
SME-08 Mounting and Storage
pdf
SME-08 Packing Specification
SME-08 Packing Specification
Application Notes
pdf
SME-08 Application Notes
SME-08 Application Notes
Datasheets
pdf
SME-08BD0 Datasheet
SME-08BD0 Datasheet

SME-08BD0

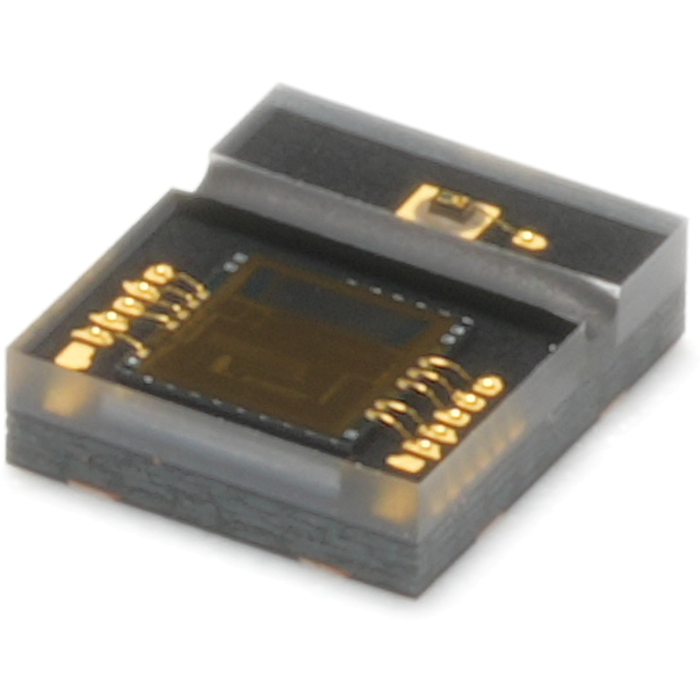

SME-08BD0 80µ Period, Incremental Reflective Analog A-B Digital Z Index
Availability:

In stock

SKU:
SME-08BD0
  $43.36
Available At

Compliance

Life Cycle:
Active
Certification 1
Certification 1

More Information

Product Name SME-08BD0 80µm Incremental Reflective Analog A-B Digital Z Index
Price $43.36
Life Cycle Active
Encoder Output Analog A-B Digital Z Index
Pitch (µm) 80
Width (mm) 3.400000
Gap (mm) 0.750000
Encoder Type Incremental Reflective
Minimum Voltage (V) 4.5
Maximum Voltage (V) 5.5
Height (mm) 1.000000
