SME-08BDx 80µ Incremental
Overview
SME-08BDx is a 80µm native encoder with selectable interpolation, except for the BD0 version which outputs analog signal for external interpolation.Different versions output different Z-Pulse widths.
| Version | AB Output | Z Pulse Width [°e] | Interpolation |
|---|---|---|---|
 SME-08BD0 | Analog | 430 | N/A - 60KHz |
| SME-08BD1 | Digital | 90 | 4x 240KHz 8x 480KHz 16x 960KHz |
| SME-08BD2 | 180 | ||
| SME-08BD3 | 360 |
Specifications
Delivery
- Sample order and design kits available from stock
- Production orders ≥250 lead time 16-18 weeks
- Contact sales@vcamerica.com to confirm price and delivery
Documents
Manufacturing
Datasheets
Application Notes
Key Features
- Low assembly costs
- Common Pinout reduces PCB design

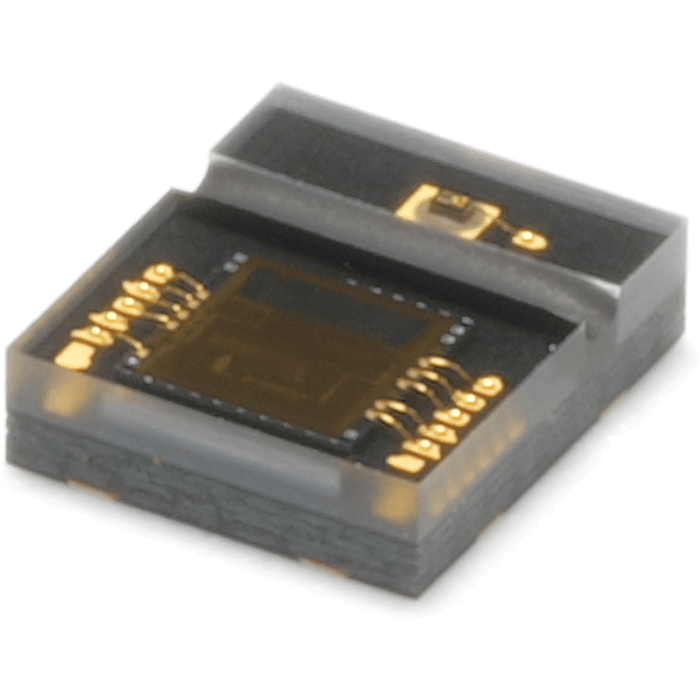

- Compact clear molded package: (3.95 × 3.4 × 1.00mm)
- Built-in interpolation circuit
- 4.5V-5.5V operation
- LED Wavelength: 850nm
SME-08BDx
SME-08BDx Series 80µ Incremental Encoders
In stock
- SKU:
- SME-08BDx
Compliance
Life Cycle:
Active
Active
More Information
| Product Name | SME-08BDx 80µ Incremental |
|---|---|
| Life Cycle | Active |
| Encoder Output | Digital AB INTRPL x4,8,16 Z90deg |
| Pitch (µm) | 80 |
| Width (mm) | 3.400000 |
| Gap (mm) | 0.750000 |
| Encoder Type | Incremental Reflective |
| Minimum Voltage (V) | 4.5 |
| Maximum Voltage (V) | 5.5 |
| Height (mm) | 1.000000 |
