Thermal Sensor Array
Overview
Seiko NPC's SMH-01B11 Thermal IR Sensor features an 8x8 array of sensor elements capable of detecting temperatures up to 250°C over a 35° field of view.
Numerous applications include human presence and fall detection, disaster prevention equipment, security devices, thermography equipment, air conditioners, cooking automation for ovens (e.g. microwaves), automatic range hoods, nursing care and patient monitoring equipment.
Key Features
- 8×8 structure, 64-element array
- Si lens optical system, approximately 35° total field-of-view angle
- Gain switching for measurement up to 250°C
- Automatic range function matches the temperature within the area
- Switchable frame measurement speed: 4, 2, 1 fps
- Switchable voltage output and temperature conversion output
- Configurable data readout to support horizontal/vertical rotation
- SMBUS standard PEC code support
- Emission temperature resolution: ±1.5°C
- Supply voltage: 5V ± 5%
- Current consumption: 8.8 mA typical
SMH-01B11

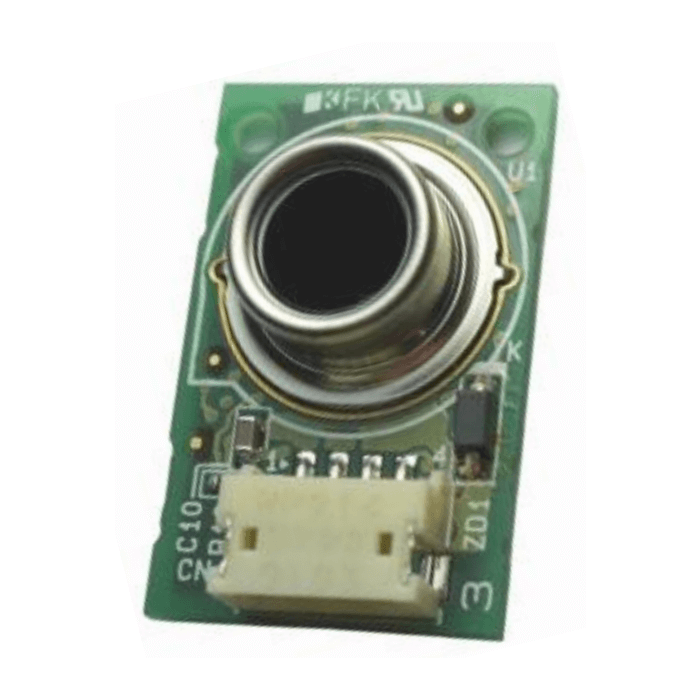

SMH-01B11 Thermal Sensor Array
Availability:
In stock
- SKU:
- SMH-01B11
Compliance
Life Cycle:
Evaluation Samples
Evaluation Samples
More Information
| Product Name | Thermal Sensor Array |
|---|---|
| Price | $999.00 |
| Availability | Samples |
| Life Cycle | Evaluation Samples |
| REACH | No |
| Prop 65 | No |
| CMRT | No |
| Compliance ROHS | No |
| Complance 5 | No |
