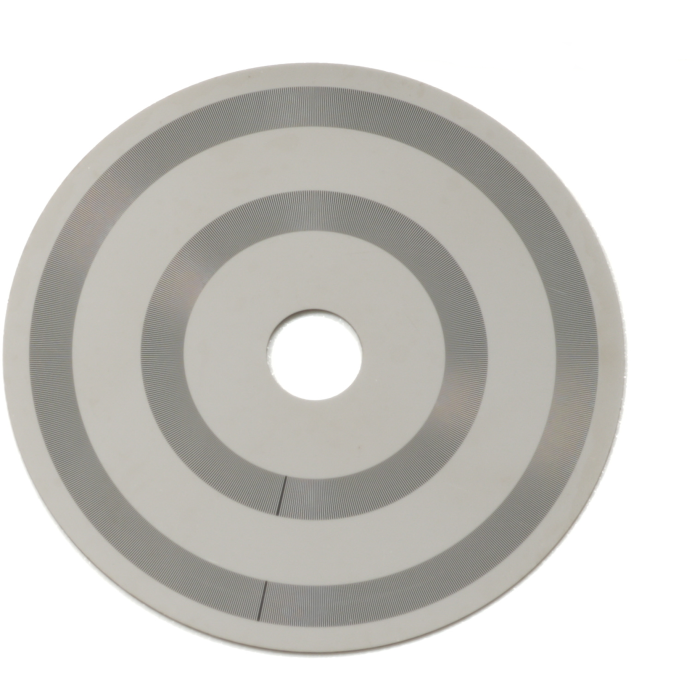

80µm Rotary SS scale CPR=865-500 OD=26 ID=4mm
Overview
Maximize performance of any optical encoder with precision glass scales by VC America. Linear and Rotaryscales are manufactured using soda-lime glass with chrome reflective and absorptive layers optimized for 630-640nm (Red LED), with dimensional precision and low defect density.
Standard scales provide opportunity for fast evaluation and support production and we manufacture to customer specifications for unique patterns and dimensional requirements.
Track periods of 20µm, 40µm, 100µm are common. We'll manufacture scales to 2µm period (1µm reflective +1µm clear or anti-reflective) when needed.
Documents
RS8-865-500-264ET-A
In stock
- SKU:
- RS8-865-500-264ET-A
- Scale Material:
- Stainless Steel
Compliance
Active
More Information
| Product Name | 80µm Rotary SS scale CPR=865-500 OD=26 ID=4mm |
|---|---|
| Price | $66.44 |
| Life Cycle | Active |
| Inner Diameter (mm) | 4.000000 |
| Outer Diameter (mm) | 26.000000 |
| CPR (Counts Per Revolution) | 865-500 |
| Pitch (µm) | 80 |
| Thickness (mm) | 0.700000 |
| Compatible Encoder | SME-08ASx |
| Compatible Encoder | SME-08ASx |
| Coating | Reflective metal with anti-reflective |
| Scale Material | Stainless Steel |
| Wavelength (nm) | R |
| Index Count | 1 |
| Index Position(s) | Main Track |
| Index Location | Main Track |
