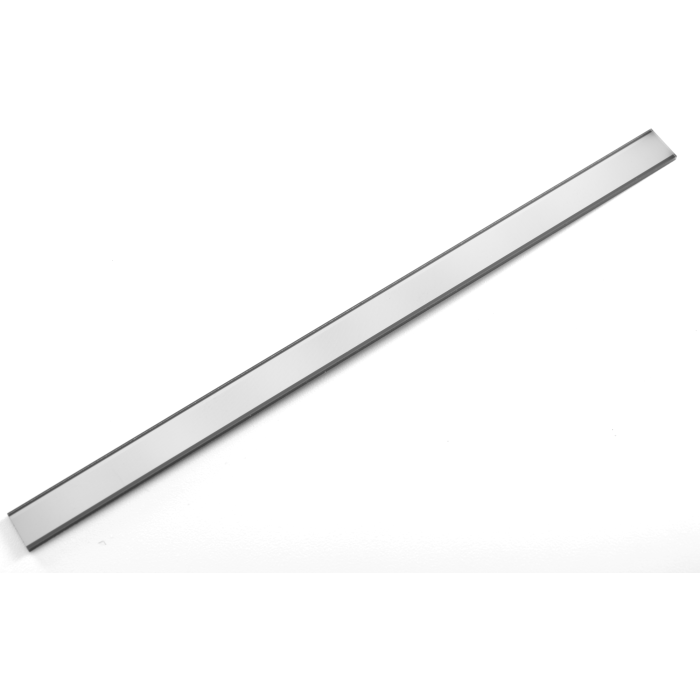

80µm Linear scales
Overview
80µm soda-lime glass precision scales complement high resolution optical reflective read head encoder modules. Nanometer photolithography creates accurate and repeatable patterns.
Production scales match the encoder, physical, environmental, and performance requirements. Coatings are processed for specific wavelengths matched to requirements. For applications requiring best accuracies over long lengths or over temperature range, glass compositions with very low CTE are available.
Specifications
For Custom Scale Requests, please contact us.
Learn more about our Scale Manufacturing Capabilities.
| SKU | Indexes | Length | Width | Total Thickness (with PSA Tape) | PSA Tape Thickness |
|---|---|---|---|---|---|
| LG80R89-5-0.7CA | No Index | 89mm | 5mm | 0.7mm | No PSA Tape |
| LG80R89-5-0.75CAT1 | No Index | 89mm | 5mm | 0.75mm | 0.05mm PSA Tape |
Documents
Key Features
- Built to Order
- Reduce manufacturing issues
- Highest Quality and Extremely low defects
- PSA Backing available
- UV Curable coatings available
- Maximize Performance of any Encoder
- Improve Accuracy with Ultra Precision Sub-Micron Photolithography
- Optimize Contrast Ratio with Coating process options
- Glass, Stainless Steel, and PET materials
LG8
In stock
- SKU:
- LG8
- Scale Material:
- Glass
Compliance
Active
More Information
| Product Name | 80µm Linear scales |
|---|---|
| Life Cycle | Active |
| Track Width (mm) | 3.000000 |
| Width (mm) | 5.000000 |
| Length | 88.75mm |
| Index Location | No Index |
| Pitch (µm) | 80 |
| Thickness (mm) | 0.700000 |
| Compatible Encoder | SME-08ASx,SME-08BDx |
| Compatible Encoder | SME-08ASx, SME-08BDx |
| Scale Material | Glass |
| Coating | Reflective Pattern with Anti-Reflective coating |
| Index Count | 0 |
| Index Position(s) | No Index |
