80µ Rotary Steel Scales
Overview
80µm stainless steel rotary scales complement high resolution optical reflective read head encoder modules. Nanometer photolithography creates accurate and repeatable patterns.
Production scales match the encoder, physical, environmental, and performance requirements. Coatings are processed for specific wavelengths matched to requirements. For applications requiring best accuracies over long lengths or over temperature range, glass compositions with very low CTE are available.
Specifications
| Glass Scale | Standard | Extended Length |
|---|---|---|
| Base Material | Soda-Lime Glass | |
| Length | Up to 160mm | >160 to 700mm |
| Length Tolerances | ±0.1mm | ±0.2mm |
| Width | As specified (3mm or 6mm are often used) | As Specified |
| Width Tolerances | ±0.05mm | ±0.1mm |
| Thickness Range | 0.3 to 1.1 | 1.0 to 6.0mm |
| Thickness Tolerances | ±0.05mm | ±0.05mm |
| Pitch (total tolerance) | ± 2.0µm | |
| Pitch (local tolerance) | ±1.0 µm | |
| Parameter | Reference | Minimum | Typical | Maximum | Unit |
|---|---|---|---|---|---|
| Pitch/Period Accuracy | Local | ±1 | µm | ||
| Total | ±2 | µm | |||
| Chrome reflective layer | Standard | 50 | 54 | 60 | % |
| Augmented | 60 | 65 | 70 | % | |
| Enhanced(620-650 nm) | 88 | 93 | 98 | % | |
| Chrome anti-reflective layer @ 620-650nm | AR | <2 | 5 | % |
Documents
Key Features
- Built to Order
- Reduce manufacturing issues
- Highest Quality and Extremely low defects
- UV Curable coatings available
- Maximize Performance of any Encoder
- Improve Accuracy with Ultra Precision Sub-Micron Photolithography
- Optimize Contrast Ratio with Coating process options
- Thin Stainless Steel

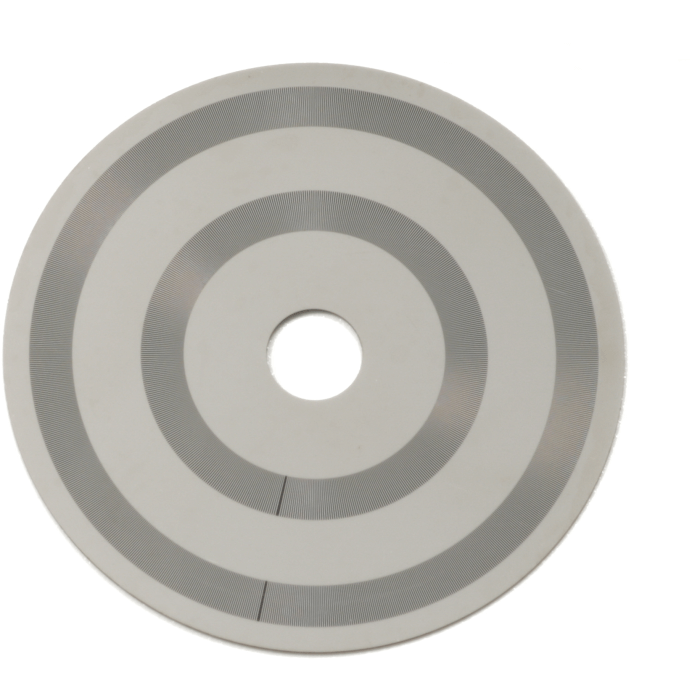

RS8
In stock
- SKU:
- RS8
- Scale Material:
- Stainless Steel
Compliance
Active
More Information
| Product Name | 80µ Rotary Steel Scales |
|---|---|
| Life Cycle | Active |
| Inner Diameter (mm) | 4.000000 |
| Outer Diameter (mm) | 26.000000 |
| CPR (Counts Per Revolution) | 865-500 |
| Pitch (µm) | 80 |
| Thickness (mm) | 0.700000 |
| Compatible Encoder | SME-08ASx, SME-08BDx |
| Coating | Reflective metal with anti-reflective |
| Scale Material | Stainless Steel |
| Index Count | 1 |
| Index Position(s) | Main Track |
| Index Location | Main Track |
